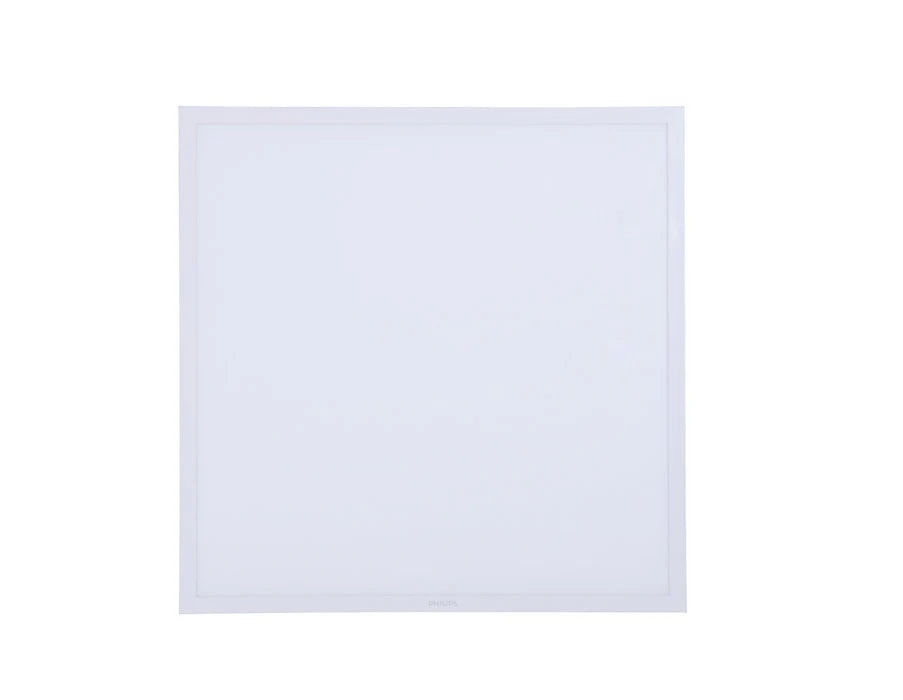

PANEL LED ENCASTRE CARRE 600*600 40W 4000K . PHILIPS

PANEL LED ENCASTRE CARRE 600*600 40W 4000K . PHILIPS

Dh 283.00 MAD
Dh 283.00 MAD
Promotion Épuisé

Les luminaires encastrés Philips ont été conçus pour réduire les coûts d'exploitation et réaliser des économies d'énergie. Nos luminaires encastrés et panels LED répondent parfaitement aux exigences des bureaux, en consommant moins d'énergie tout en offrant un environnement de travail confortable.

Spécifications

 General information
Beam angle of light source
- °
Light source color
865 cool daylight
Light source replaceable
No
Number of gear units
1 unit
Driver/power unit/transformer
Power supply unit external
Driver included
Yes
Optic type
-
Optical cover/lens type
Polystyrene bowl/cover prismatic
Luminaire light beam spread
120°
Control interface
-
Connection
Connection unit 2-pole
Cable
-
Protection class IEC
Safety class II
Glow-wire test
Temperature 650 °C, duration 30 s
Flammability mark
-
CE mark
-
ENEC mark
-
Warranty period
3 years
Constant light output
No
Number of products on MCB of 16 A type B
43-65
EU RoHS compliant
Yes
Light source engine type
LED
Operating and electrical
Input Voltage
100 to 240 V
Input Frequency
50 or 60 Hz
Power Factor (Min)
0.9
Controls and dimming
Dimmable
No


Mechanical and housing
Housing Material
Aluminum extruded
Reflector material
-
Optic material
Polymethyl methacrylate
Optical cover/lens material
Polystyrene
Fixation material
-
Optical cover/lens finish
Frosted
Overall length
603 mm
Overall width
603 mm
Overall height
36 mm
Color
White women
Approval and application
Ingress protection code
IP20  [ Finger-protected]
Mech. impact protection code
IK02  [ 0.2 J standard]
Initial performance (IEC compliant)
Initial luminous flux (system flux)
3600 lm
Luminous flux tolerance
+/-10%
Initial LED luminaire efficacy
90 lm/W
Init. Corr. Color Temperature
6500 K
Init. Color Rendering Index
>80
Initial chromaticity
(0.38, 0.38) SDCM≤5
Initial input power
40 W
Power consumption tolerance
+/-10%
Over time performance (IEC compliant)
Median useful life L70B50
25000 h


Application conditions
Ambient temperature range
-10 to +35 °C
Maximum dim level
Not applicable
Suitable for random switching
No
Product data
Full product code
871016332669699
Order product name
RC091V LED36S/865 PSU W60L60 TW S1
EAN/UPC - Product
8710163326696
Order code
911401724592
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
2
Material Nr. (12NC)
911401724592
Net Weight (Piece)
2.150 kg



Télécharger Fiche Technique PDF

Afficher tous les détails
