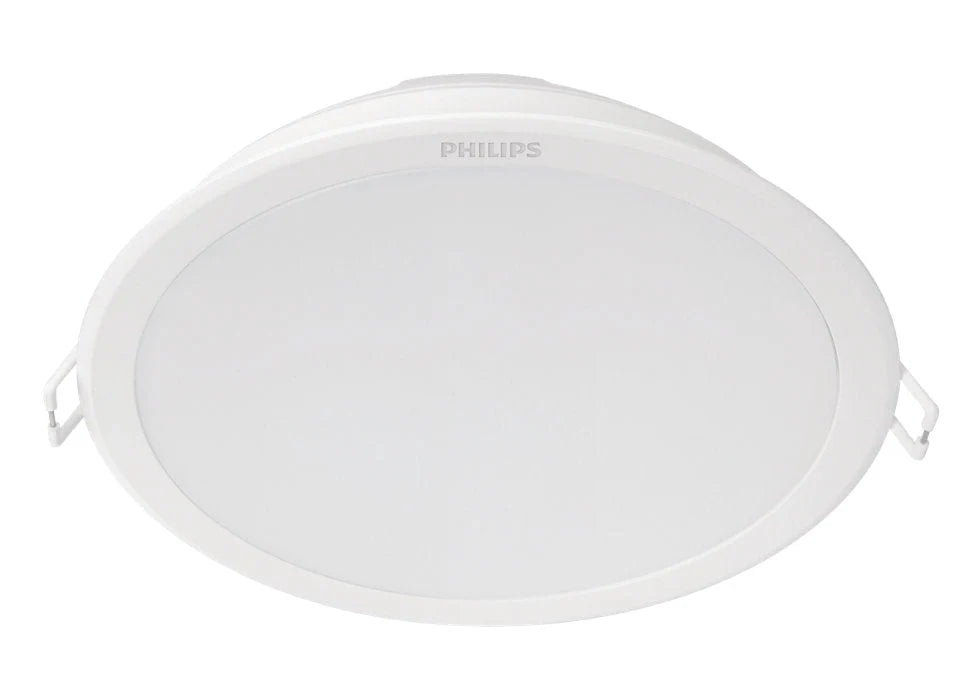

PANEL LED ENCASTRE ROND 17W 4000K . PHILIPS

PANEL LED ENCASTRE ROND 17W 4000K . PHILIPS

Dh 47.00 MAD
Dh 47.00 MAD
Promotion Épuisé
 General information
Light source color
840 Neutral white
Light source replaceable
No
Luminaire light beam spread
110°
Protection class IEC
Safety class II
Flammability mark
For mounting on normally flammable surfaces
CE mark
CE mark
Warranty period
1 years
Constant light output
No
EU RoHS compliant
Yes
Light technical
Color Rendering Index (Nom)
80


Operating and electrical
Input Voltage
220 to 240 V
Input Frequency
50 or 60 Hz
Inrush current
7.7 A
Power Factor (Min)
0.51
Controls and dimming
Dimmable
No


Mechanical and housing
Housing Material
Plastic
Reflector material
-

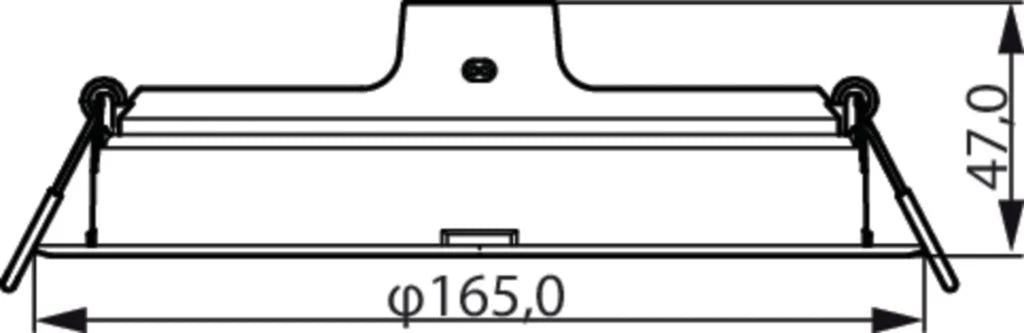

Overall height
47 mm
Overall diameter
170.1 mm
Color
White
Dimensions (Height x Width x Depth)
47 x NaN x NaN mm
Approval and application
Ingress protection code
IP20  [ Finger-protected]
Mech. impact protection code
IK03  [ 0.3 J]
Initial performance (IEC compliant)
Initial luminous flux (system flux)
1300 lm
Initial LED luminaire efficacy
78.00 lm/W
Init. Corr. Color Temperature
4000 K
Init. Color Rendering Index
80
Initial chromaticity
(0.313, 0.337) RG0
Initial input power
17 W
Over time performance (IEC compliant)
Median useful life L70B50
15000 h


Application conditions
Ambient temperature range
-20 to +40 °C


Product data
Full product code
5946631E4
Order product name
59466 MESON 150 17W 4000K WH recessed
EAN/UPC - Product
8718696173671
Order code
915005806501
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
915005806501
Net Weight (Piece)
0.127 kg
