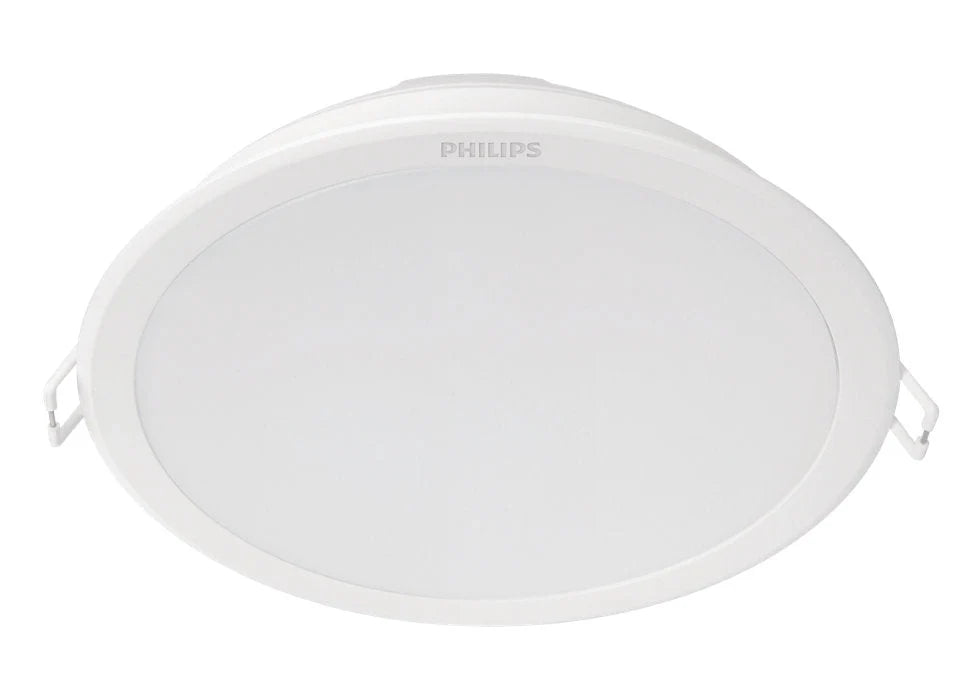

PANEL LED ENCASTRE ROND 7W 4000K . PHILIPS

Name: PANEL LED ENCASTRE ROND 7W 4000K . PHILIPS
Brand: FLUXIONLIGHT
Price: 31.00 MAD
Availability: InStock

Dh 31.00 MAD

Promotion Épuisé

Quantité

General information

Light source color	830 warm white
Light source replaceable	No
Number of gear units	1 unit
Driver/power unit/transformer	Power supply unit
Driver included	Yes
Optic type	Wide beam
Luminaire light beam spread	110°
Cable	Cable without plug 2-pole
Protection class IEC	Safety class II

Glow-wire test	Temperature 650 °C, duration 30 s
Flammability mark	For mounting on normally flammable surfaces
CE mark	CE mark
Warranty period	1 years
Constant light output	No
EU RoHS compliant	Yes

Operating and electrical

Input Voltage	220 to 240 V
Input Frequency	50 or 60 Hz

Inrush time	0.3 ms
Power Factor (Min)	0.5

Controls and dimming

Dimmable

Mechanical and housing

Overall height	47 mm
Overall diameter	120 mm
Color	White
Dimensions (Height x Width x Depth)	47 x NaN x NaN mm

Approval and application

Ingress protection code	IP20 [ Finger-protected]
Mech. impact protection code	IK03 [ 0.3 J]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	500 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	66.00 lm/W
Init. Corr. Color Temperature	4000 K

Init. Color Rendering Index	80
Initial chromaticity	(IEC3000K, 0.44, 0.403) 6
Initial input power	7.5 W
Power consumption tolerance	+/-10%

Over time performance (IEC compliant)

Driver failure rate at 5000 h

5 %

Median useful life L70B50

15000 h

Application conditions

Ambient temperature range

-20 to +40 °C

Suitable for random switching

Not applicable

Product data

Numerator - Packs per outer box	12
Material Nr. (12NC)	929003192402
Net Weight (Piece)	0.070 kg
